KGL-3020

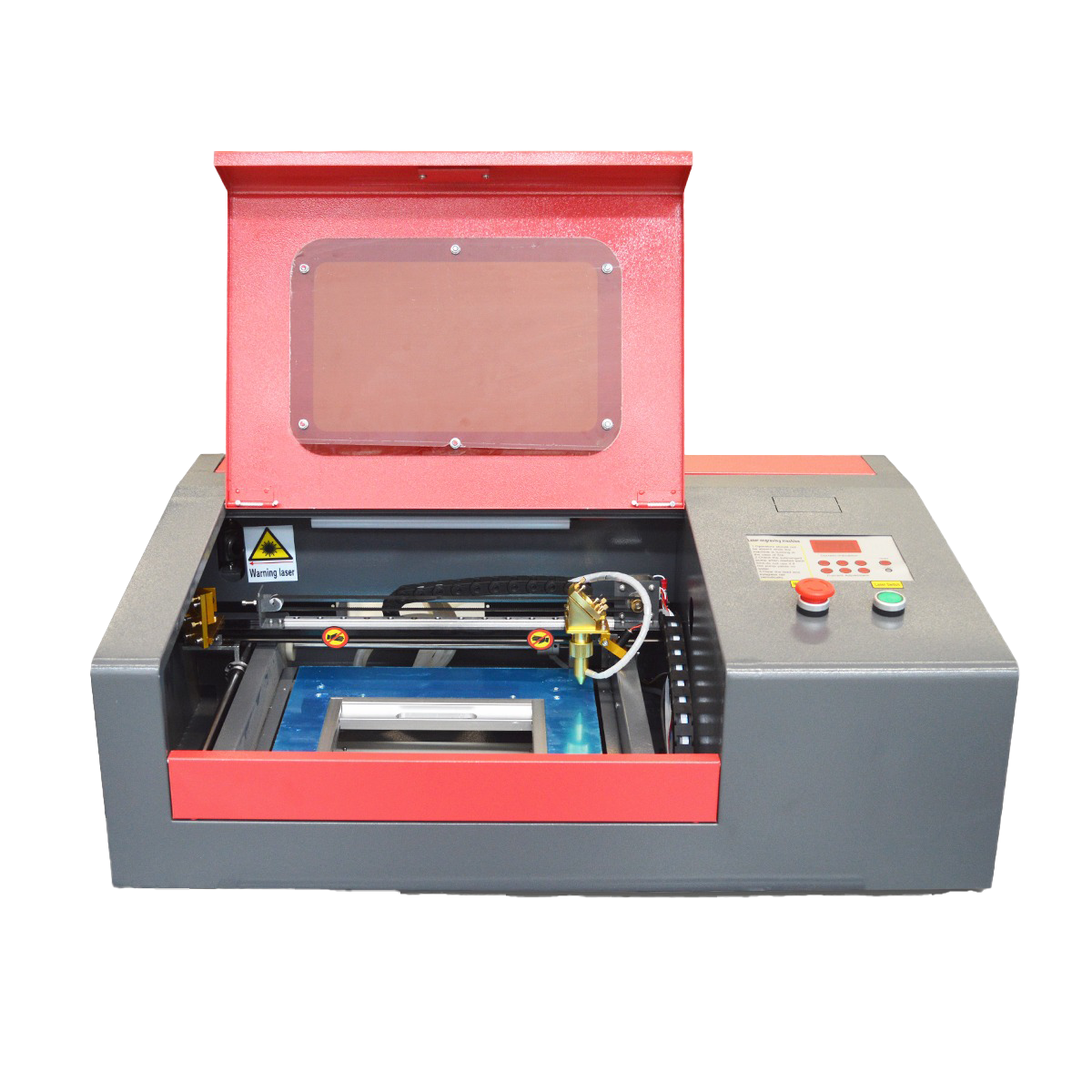

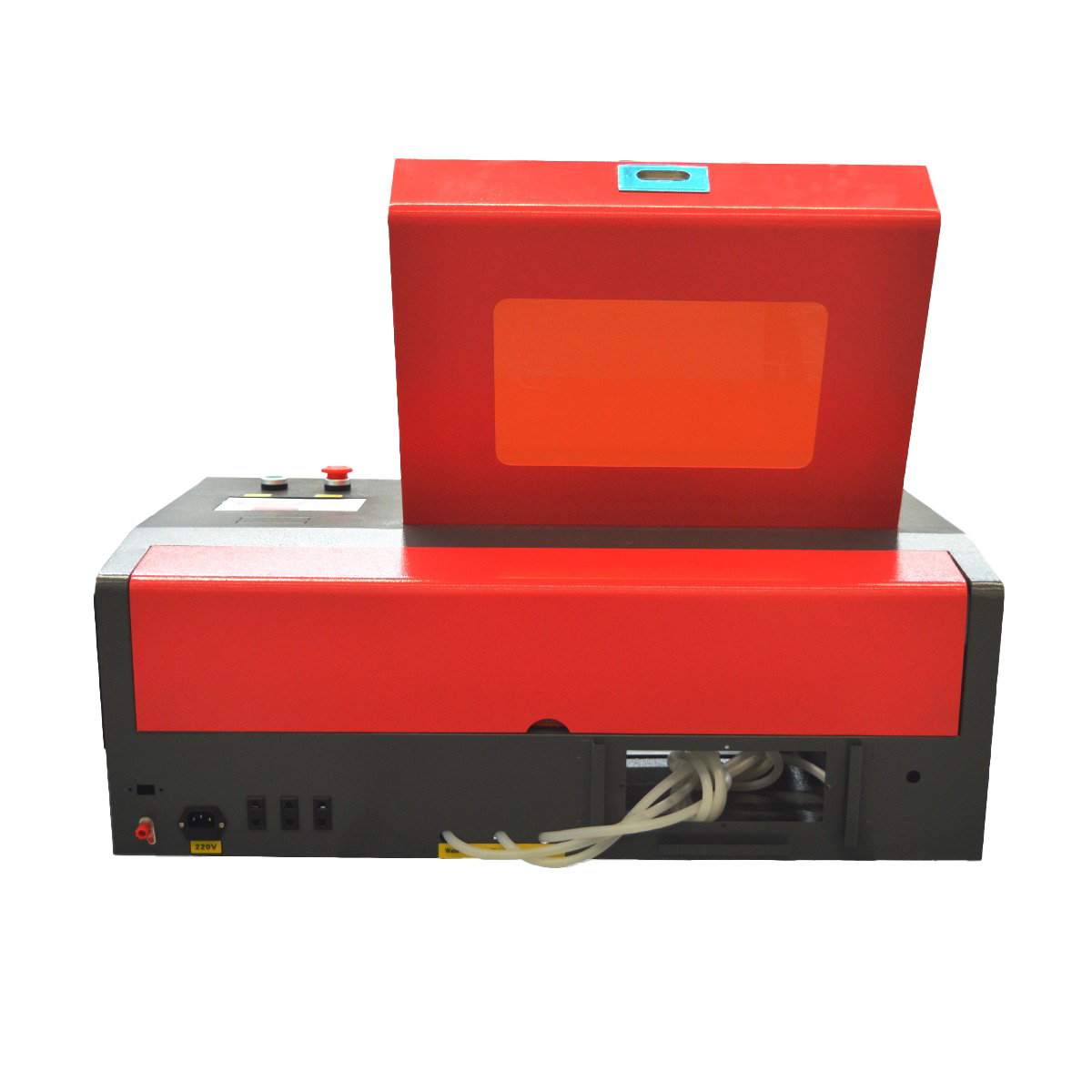

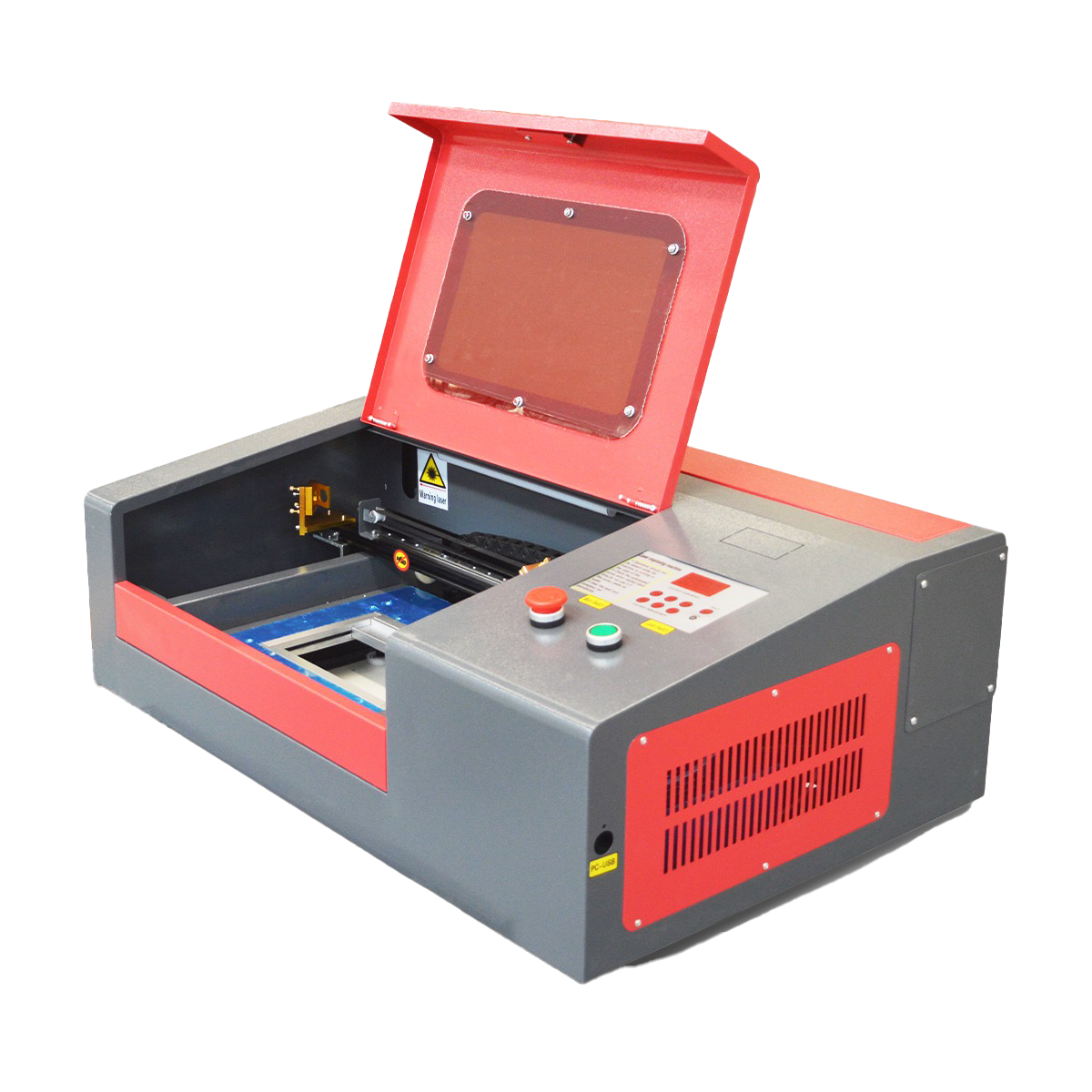

KGL-3020 Laser Engraving Machine
KGL-3020 Stamp Laser Engraving Machine is a professional CO₂ laser engraving and cutting machine designed for stamp production, precision engraving, and detailed cutting applications. With its compact structure, high-precision performance, and user-friendly operating system, it provides an efficient solution for workshops, small businesses, and professional engraving studios.
Fast and secure shipping
Technical support and warranty
Compatible Materials
Wood
Acrylic
Glass
Leather
Paper
Stamp
Plastic
MDF
Plexiglass
Granite
Felt
Denim
Fabric
Marble
Ceramic
Technical Specifications
| Work Area | 300*200mm |
| Engraving Speed | 1-24000 mm/min |
| Cutting Speed | 1-900 mm/mine |
| Laser Power | 40w-50w |
| Laser Type | CO2 laser tube |
| Cooling Mode | Water cooling protection system |
| Water Conservation | Yes |
| Positioning Path | Red light positioning |
| Positioning Accuracy | <=0.01 mm² |
| Engine | Step 42 motor |
| Linear Guide | X-axis linear guide rail |
| Working Platform | Honeycomb |
| Lifting Weight | Up and down, 0-50 mm² |
| Power supply | AC220V 50hz |
| Net Weight | 35 kg |
| Packaging | Plywood case, approximately 40kg |
| System Environment | Windwos CP/win7/8/10 |
| Compatible Software | Coreldraw |
| Guarantee | 1 year warranty for the machine. |
| Air Compressor | Yes |
| Su Pompası | Yes |
| Accessory | fan*1, data cable*1, chimney*1, disk*1, focus ruler*1, switch*2 |
| Machine Size | 800*530*250 mm |
