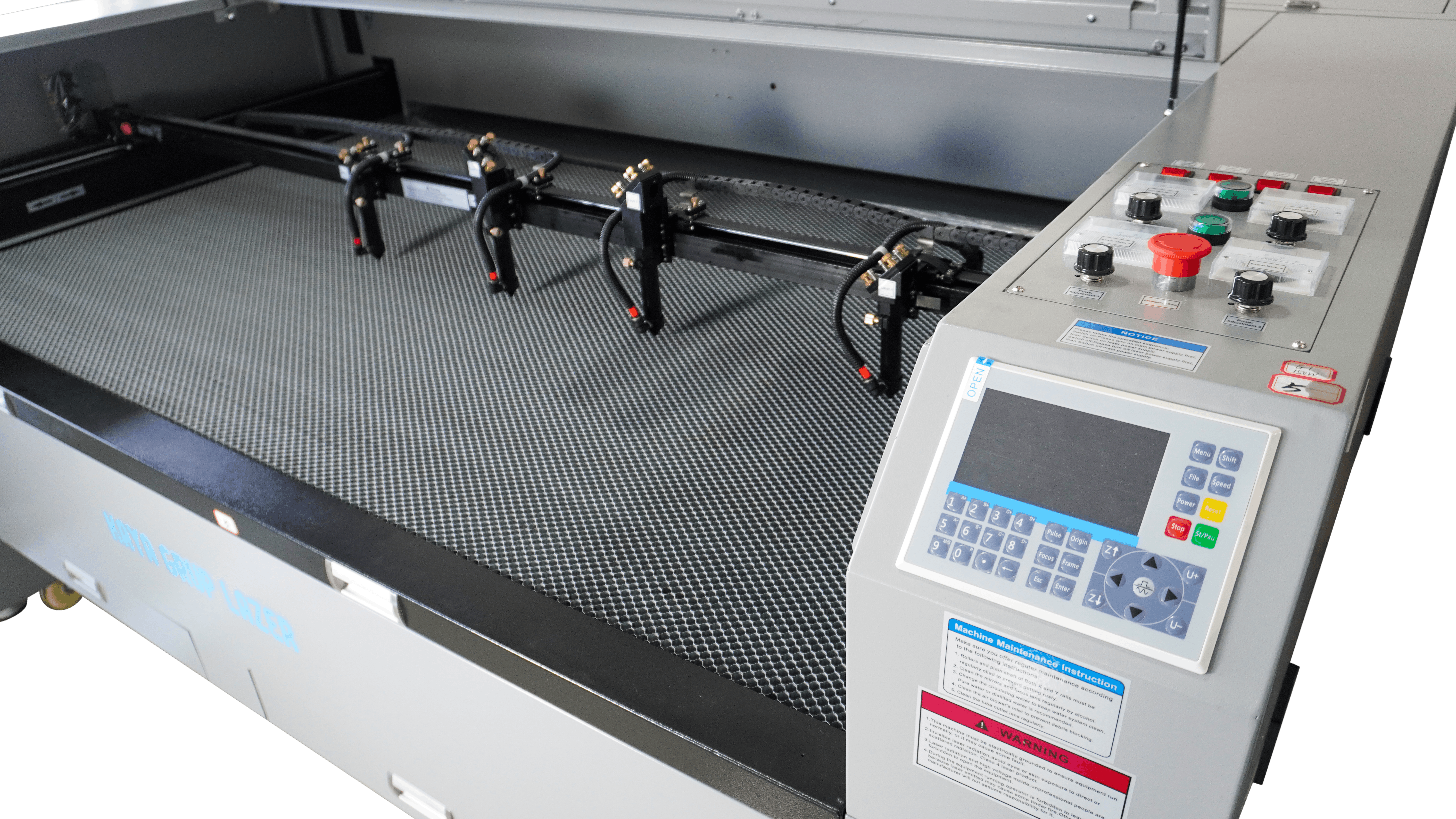

KGL-1610 4-Head Laser Cutting Machine

The KGL-1610 Four Head Laser Cutting Machine is an industrial solution developed to maximize efficiency in high-volume production processes. With working area options of 1000x1600 mm and 1000x1800 mm, it allows comfortable processing of large materials, while its four independent laser heads operate simultaneously to significantly accelerate production. Each head is powered by its own laser tube and independent power supply, delivering 130W to 150W of power for strong and continuous performance.

Operating at a wavelength of 10.64 nm, the machine provides high-performance cutting on a wide range of materials including acrylic, MDF, wood, plastic, and paper. The adjustable power range from 0% to 100% offers flexibility for both fine detail work and intensive cutting operations. With a cutting speed range of 1–700 mm/s and a positioning accuracy of ±0.1 mm, it ensures precise and repeatable results.

Equipped with dual 750W exhaust fans, the system efficiently removes smoke during operation, while dual 550W air compressors improve cutting quality by delivering cleaner edges. The machine is supported by two CW5200 water cooling units, ensuring stable performance even during extended working hours.
