CATEGORIES / Laser Cutting Machine / KGL-1810 KGL-1810 Single / Dual Head Laser Cutting Machine
KGL-1810

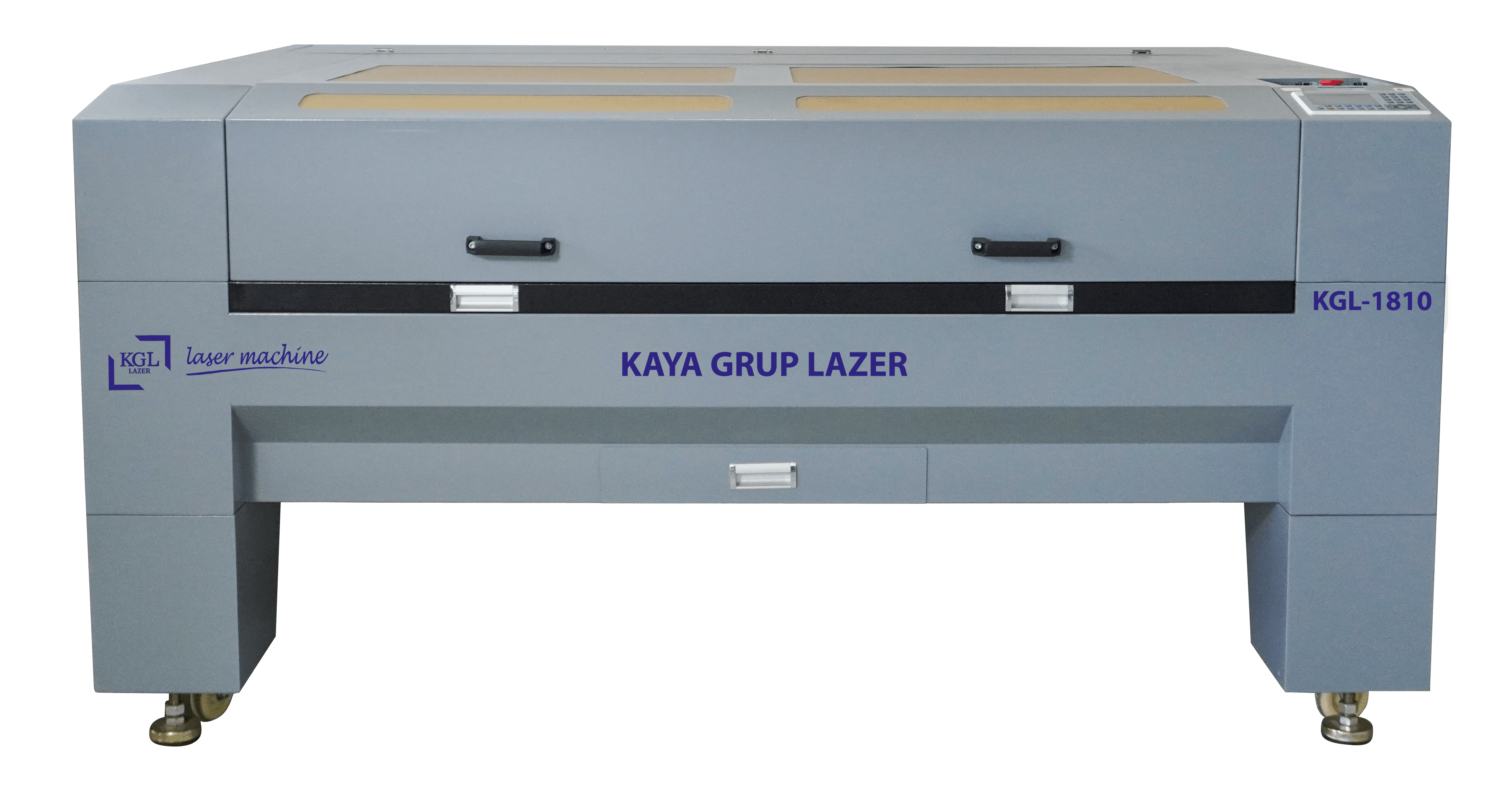

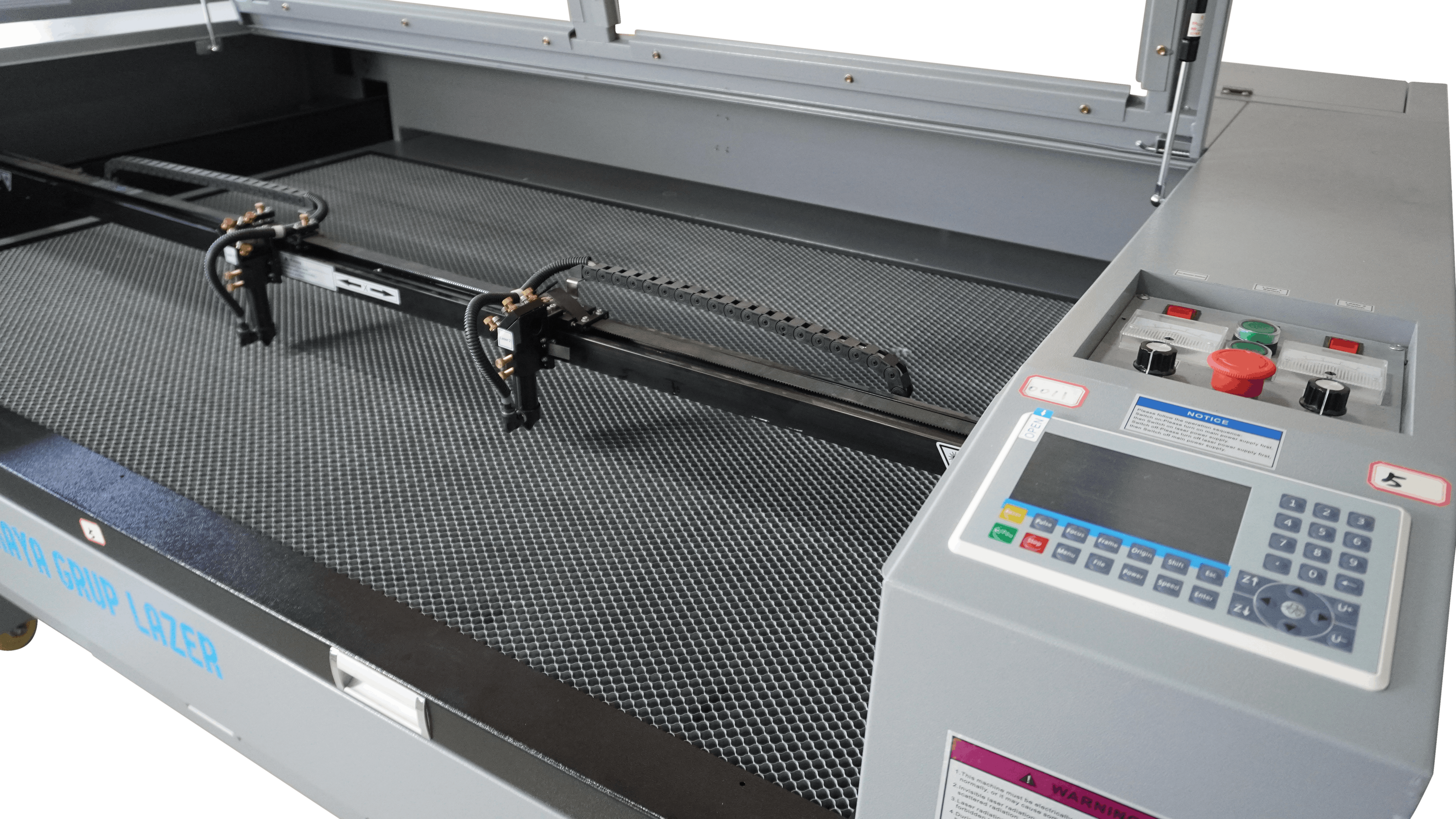

KGL-1810 Single / Dual Head Laser Cutting Machine

KGL-1810 Laser Cutting Machine is a high-performance CO₂ laser cutting and engraving system designed for professional production and industrial applications, available with single-head, dual-head, four-head, and camera system options. With its 1800 x 1000 mm working area and 130W–150W laser power, it can perform cutting, engraving, and marking on a wide range of materials including wood, MDF, plexiglass, acrylic, leather, fabric, denim, felt, granite, glass, rubber stamps, paper, and plastics. Depending on the material type, it offers a cutting capacity of up to 8–10 mm, while ensuring fast, efficient, and stable production with its RD6445 control panel, RD Software control system, 2” IIVI infrared focusing lens, industrial gas-assisted water cooling system, and high-precision axis structure. Its large working area and multi-head configurations make it a powerful and flexible solution for mass production in industries such as advertising, textiles, promotional products, and decorative manufacturing.

Fast and secure shipping
Technical support and warranty

Compatible Materials

Wood Wood
Acrylic Acrylic
Glass Glass
Leather Leather
Paper Paper
Stamp Stamp
Plastic Plastic
Textile Textile

Technical Specifications

WORK AREA X-direction 1800mm / Y-direction 1000mm
LASER POWER MINIMUM 130W - MAXIMUM 150W
FOCUS 2'' Focusing Lens (IIVI-infrared)
COOLING SYSTEM Industrial Gas-Assisted Water Cooling System
LASER WELDING TIME 6000 hours
SMOKE EXTRACTION MOTOR 900 w
WORK SCREEN RD6445
DRIVER MOTOR STEP MOTOR
AXES SYSTEM HIGH WORKING PRECISION
CONTROL SYSTEM / QUALITY RD SOFTWARE
ELECTRICITY REQUIREMENTS 220 VAC - 50-60 Hz
ENERGY CONSUMPTION 0.78 kW/hour
OPERATING TEMPERATURE 18-32 C
PROGRAM FORMATS bmp. jpg. tif. Dxf. Dst. Plt. Etc.
WORK PRECISION 0,02 /800 mm
SINGLE LINE SCANNING SPEED 800mm /s.
MACHINE DIMENSIONS (L*W*H)(mm) 2180*1580*1120mm
WEIGHT (Kgs) 650Kgs
