CATEGORIES / Laser Cutting Machine / KGL-1390 KGL-1390 Single / Dual Head Laser Cutting Machine
KGL-1390

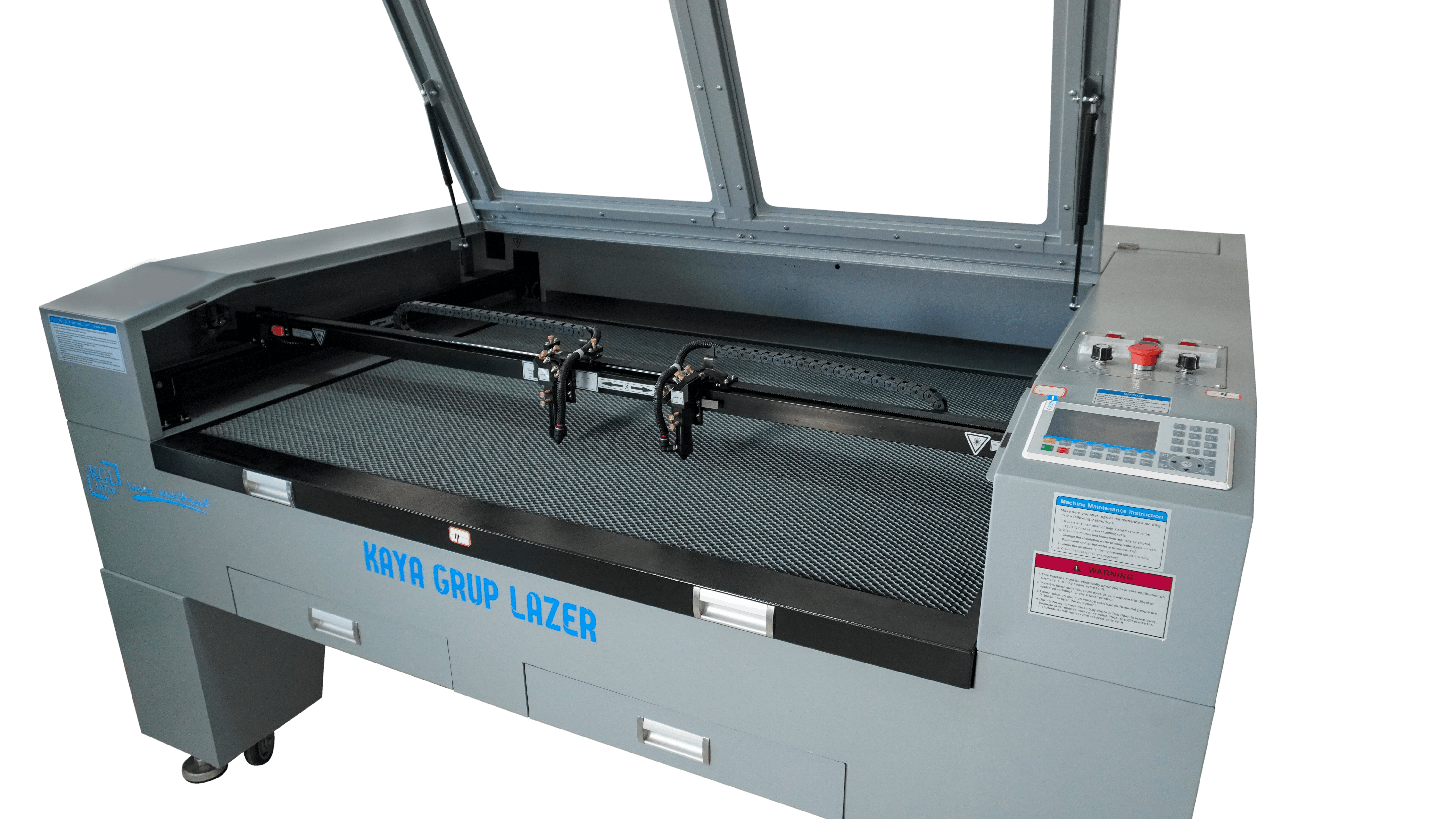

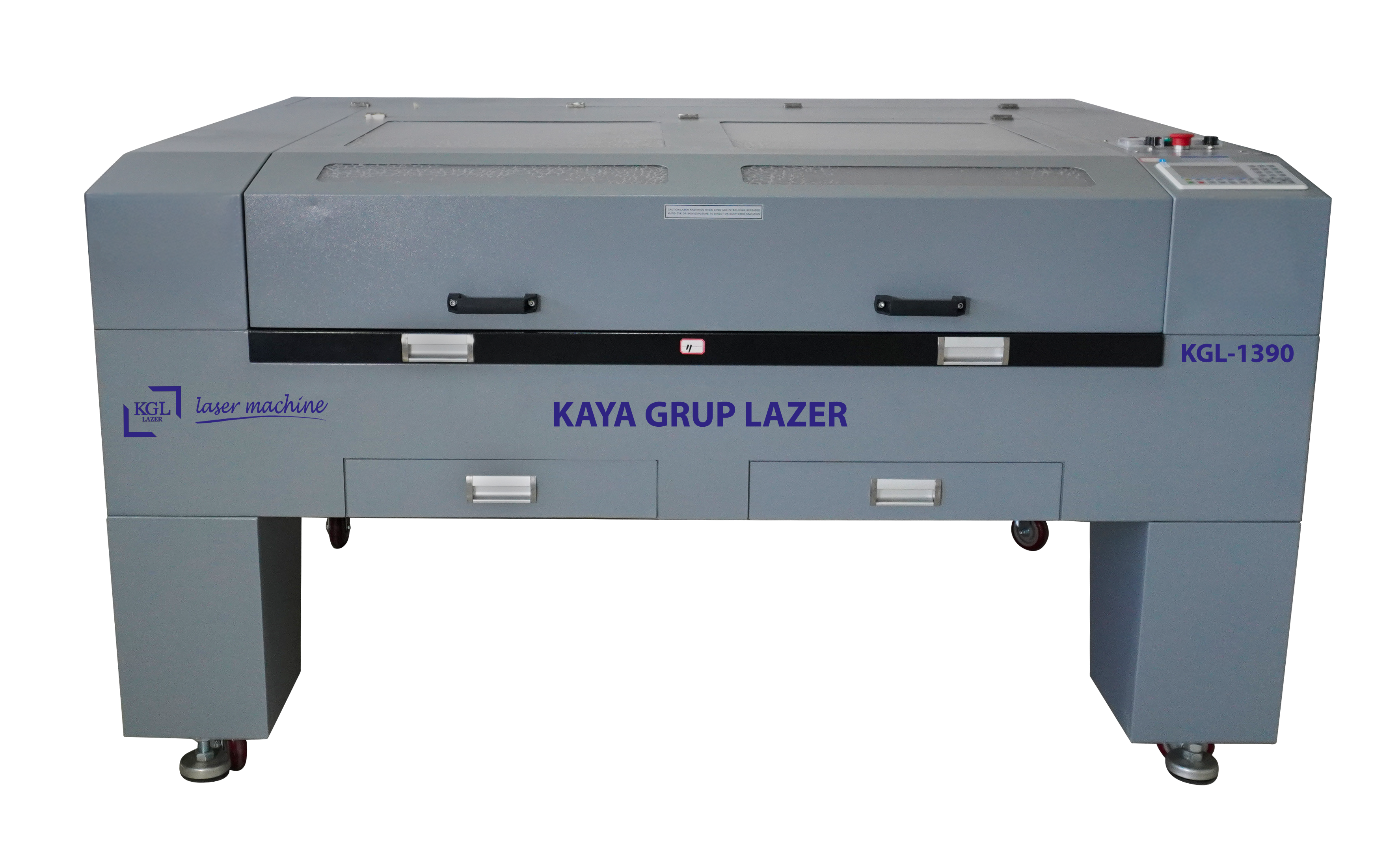

KGL-1390 Single / Dual Head Laser Cutting Machine

KGL-1390 Single / Dual Head Laser Cutting Machine is a high-performance CO2 laser cutting and engraving machine designed for professional production, workshop use, and custom applications. With its 1300x900 mm working area, 130W-150W laser power, and single or dual head option, it can perform cutting, engraving, and marking on a wide range of materials such as wood, MDF, plexiglass, acrylic, leather, fabric, denim, felt, granite, glass, rubber, paper, and plastic. Offering a cutting capacity of up to 8-10 mm depending on the material, the KGL-1390 laser machine provides an efficient and reliable solution with high precision and versatile production capability.

Fast and secure shipping
Technical support and warranty

Compatible Materials

Wood Wood
Acrylic Acrylic
Glass Glass
Leather Leather
Paper Paper
Stamp Stamp
Plastic Plastic
Textile Textile

Technical Specifications

WORK AREA X-direction 1300mm / Y-direction 900mm
LASER POWER MINIMUM 130W - MAXIMUM 150W
FOCUS 2'' Focusing Lens (IIVI-infrared)
COOLING SYSTEM Industrial Gas-Assisted Water Cooling System
LASER WELDING TIME 6000 hours
SMOKE EXTRACTION MOTOR 750 w

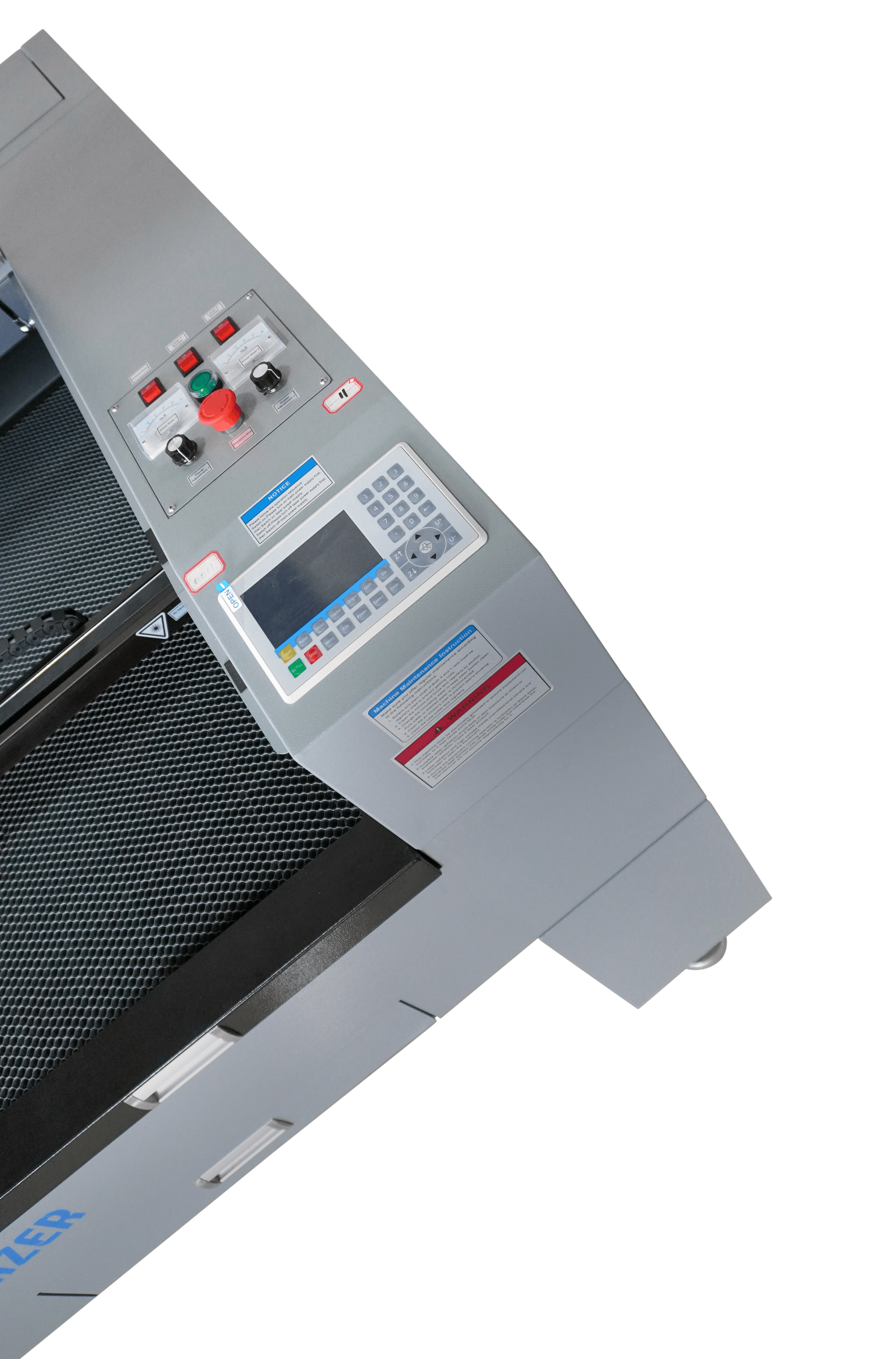

WORK SCREEN RD6445
DRIVER MOTOR STEP MOTOR
AXES SYSTEM HIGH WORKING PRECISION
CONTROL SYSTEM / QUALITY RD SOFTWARE
ELECTRICITY REQUIREMENTS 220 VAC - 50-60 Hz
ENERGY CONSUMPTION 0.78 kW/hour
OPERATING TEMPERATURE 18-32 C
PROGRAM FORMATS bmp. jpg. tif. Dxf. Dst. Plt. Etc.
WORK PRECISION 0,02 /800 mm
SINGLE LINE SCANNING SPEED 800mm /s.
MACHINE DIMENSIONS (L*W*H)(mm) 1880*1480*1120mm
WEIGHT (Kgs) 450Kgs
